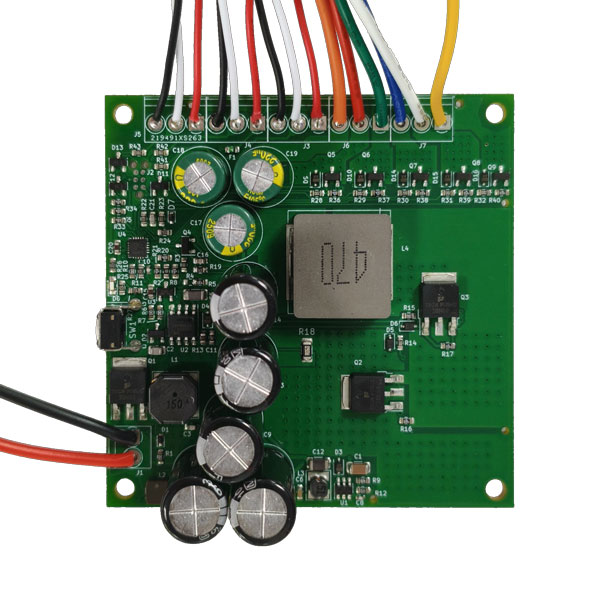

Node for connecting, controlling and powering end devices. It has five PWM outputs used together (e.g. for RGBCCT luminaire) or separately (e.g. for five white light luminaires).
Characteristics
Bus voltage: 48V DC
Maximum input power: 120W
Output
Voltage for all channels: 24V with PWM (dimming for each channel is possible)
PWM frequency: 1250Hz
Maximum long-term power for each channel:
- one channel use = 100W
- two channels simultaneously use = 50W
- three channels simultaneously use = 40W
- four channels simultaneously use = 30W
- five channels simultaneously use = 24W
Each output can function as a mechanical switch equivalent for external AC relays. For example, to control traditional AC luminaires.
Input
Input channel: 3 (dry-contact)
The device can work with mechanical switches, buttons and sensors with different algorithms (control any selected lights in the network):
- Momentary: Push-for "ON" or Push-for "OFF"
- Toggle Switch: A flip switch with one state for "ON" and one state for "OFF"
- Edge Switch: Changes state on every hit
- Activation Switch (for motion sensor): Any input turns "ON" and resets Auto OFF timer
Wireless interfaces
No
General
Operating temperature: 40 to 115 °F
Storage temperature: -15 to 150 °F
Relative humidity: 0 to 95% non-condensing
Device power consumption: < 1 W
UL Listed option: No
