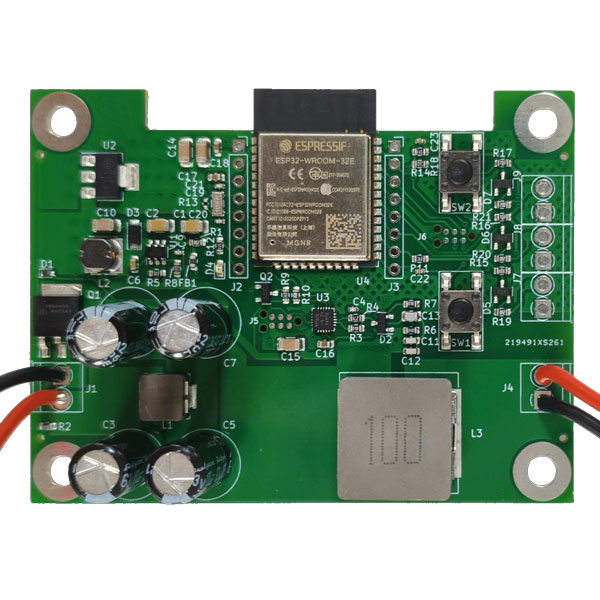

This device is the system's central. It stores and processes algorithms for luminaire behavior, receives control signals from switches and sensors, and manages the end devices.
Characteristics
Bus voltage: 48V DC
Maximum power consumption: < 1W
Input
Input channel: 3 (dry-contact)
The device can work with mechanical switches, buttons and sensors with different algorithms (control any selected lights in the network):
- Momentary: Push-for "ON" or Push-for "OFF".
- Toggle Switch: A flip switch with one state for "ON" and one state for "OFF".
- Edge Switch: Changes state on every hit.
- Activation Switch (for motion sensor): Any input turns "ON" and resets Auto OFF timer.
Wire interfaces
- Modbus RS-485*
- DALI*
Wireless interfaces
- WiFi 4 (802.11 b/g/n) 2.4GHz
- Bluetooth Low Energy (BLE)*
- ZigBee*
Remote control
The system has its own web interface for control and configuration from any device in the home WiFi network (via a browser).The system can be integrated into custom Smart Home systems via various interfaces:
- MQTT
- web-API
Mobile app: no. The system is controlled via a browser.
The control system device can be connected anywhere on the bus (at the beginning near the power supply, in the middle, at the end).
General
Operating temperature: 40 to 115 °F
Storage temperature: -15 to 150 °F
Relative humidity: 0 to 95% non-condensing
Device power consumption: < 1 W
UL Listed option: No
==========
* - COMING SOON
